How Does a Three Piece Film Blowing Machine Work Extruder screw die head air ring

How is plastic film manufactured at a factory? I have more than 10 years expertise in the plastic film extrusion sector, I know the three piece film blowing machine inside out.

In this article I will describe how a three piece film blowing machine works. You will learn about the three primary pieces of it. I will also explain how each section influences the film quality and output.

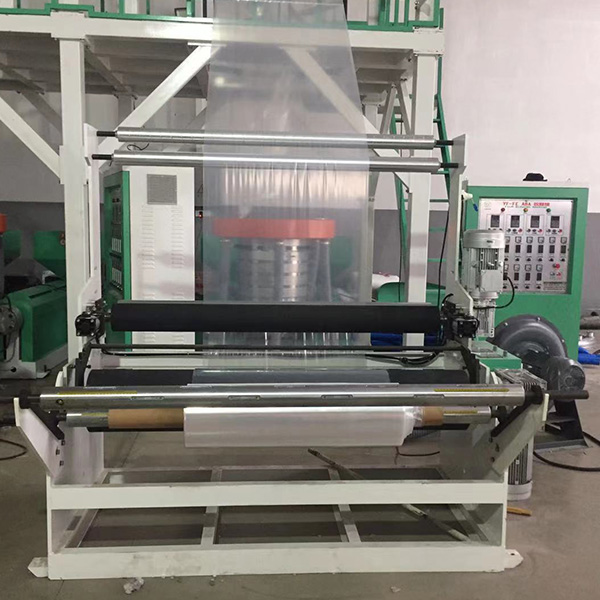

What is a three piece film blowing machine?

The raw plastic pellets are converted into plastic film using a three piece film blowing machine. It is termed "three piece" because there are three primary sections. They are the extruder screw, the die head and air ring. Each piece has its own duty. Together they heat, shape and cool the plastic into film.

A three piece film blowing machine can operate with HDPE, LDPE and LLDPE plastics. Non-stop therefore it is perfect for huge industries. This is one of the essential elements of the world of plastic film manufacturing machines. Today's machines are engineered to conserve energy and reduce waste.

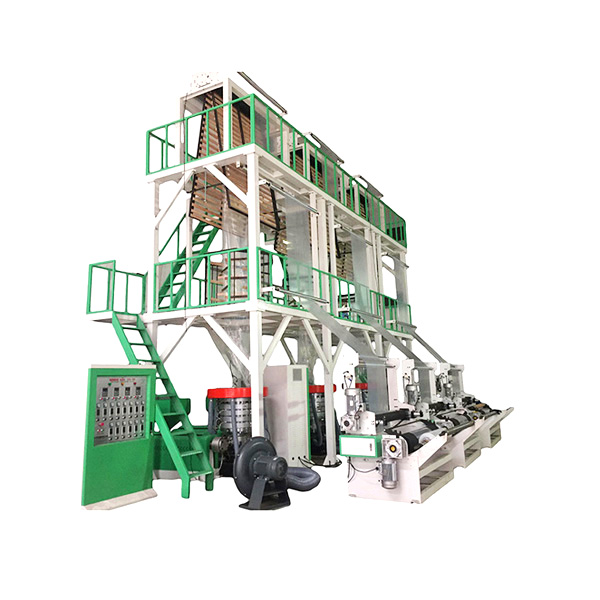

Key Parts of a Three Piece Film Blowing Machine

How Does the Extruder Screw Melt and Push the Plastic?

The heart of every Plastic Film Extrusion Machine is its Extruder Screw. It’s a long screw that revolves within a heated barrel. Plastic pellets go in one end . Plastic comes out the other end melted. Three zones in the screw. Each zone serves a particular purpose.

The feed zone is where the pellets are taken on. They are melted by the compression zone. Metering zone Feeds smooth melt to the die head. The appropriate screw design, makes for better film and higher output for a High Output Film Blowing Machine.

How Does Screw Speed Affect Film Quality?

Screw speed is the speed at which plastic moves. Too rapidly and the plastic may not melt correctly. Too sluggish and the production drops down. The appropriate speed is according to kind of plastic and film thickness.

• Fast screw speed increases production but may excessively heat the melt

• Better melt control at low speed

• Plastic mixing efficiency depends on screw design

• Special Barrier Screws Help LLDPE Film Blowing Machine Resins

Extruder Screw Zones: Temperature, Role, and Film Effect

What Happens If the Screw Is Worn or Damaged?

A worn screw will cause the melt to flow unevenly. This results in thin areas or holes in the film. The good operation of your Plastic Film Manufacturing Machine depends on the proper treatment of the screw.

• Output drops, energy usage climbs as screws wear

• Damaged screws cause faults in films and waste

• Clean the screw regularly to prevent burned plastic build-up

• Change worn screws in time to save the complete machine

How Does the Die Head Shape the Film Tube?

The die head forms the molten plastic into a tube. It’s at the end of the extruder. It features a circular hole (called an annular die ). It is a hole in a circular . Plastic moves through it . It emerges as a hollow tube.

The size of the die gap influences the film thickness and breadth. A good die head will produce a tube of equal thickness all around. This is very important for a Polyethylene Film Blowing Machinery. Keep the die head clean and in the center to prevent streaks on the film.

Single Layer vs. Multi Layer Die Head: Which One Is Better?

Single-layer die head produces one-layer film. Multi Layer Film Blowing Machine die head create two or more layers at the same time. Multi-layer film is more robust and performs better for difficult packaging applications.

Advantages of Multi-Layer Die Heads:

• More powerful film without increased weight

• Increased protection against humidity and gas

• Can blend multiple kinds of resin in a single film

• More product possibilities from a single machine

Disadvantages of Multi-Layer Die Heads:

• Costlier to purchase Harder to set up and clean

• Temp control has to be stricter.

• Needs more trained people

Single Layer vs. Multi Layer Die Head: Quick Comparison

Single layer dies are ideal for simpler projects and smaller budgets. Multi-layer dies are excellent when film strength and barrier are important. A multi-layer is the preferable long-term option for increasing factories.

How Does Die Head Alignment Affect Film Quality?

If the die head is not centered, one side of the film will be thick. The opposite side will be thin.  This is termed a gauge transformation. It forms weak places and may rupture bags. The die head must be centered while setting up the machine.

• Uneven film from off center die heads.

• Check die head before each run

• Some of the new machines incorporate auto-centering die heads

• Good alignment also saves on material

How Does the Air Ring Cool and Stabilize the Film Bubble?

The air ring is just above the die head. It blasts chilly air on the growing plastic bubble. The cold air hardens the flexible plastic into a solid layer. The bubble form and size is controlled by the air ring. This influences the breadth and thickness of film.

A good air ring rounds and steadies the bubble. This is very important for any Industrial Film Blowing Machine. Some machines have dual-lip air rings. They cool the bubble more . Higher speeds are possible .

Real-World Examples: Air Ring Use in Different Industries

How Does Air Volume and Speed Change the Bubble?

Too much air makes the bubble big and flat. Too little air, it’s dense and narrow. Right balance yields optimal film size.

• more air = bigger bubble = bigger film

• Less air = smaller bubble = narrower film

• Faster air = faster cooling = stiffer film

• delayed air = delayed cooling = softer film

• steady air = constant film thickness across the roll

What Makes a High Pressure Film Blowing Machine Different?

The pressure within the extruder is greater in a high pressure film blowing machine. It can cope with tough polymers like HDPE. To stay ahead, the air ring must chill the bubble quicker. The final product is a tough film used for high duty bags and industrial applications.

Key Tips to Get the Best Results From Your Machine

To obtain the most from a Plastic Bag Making Film Machine, all three sections need to be in good working condition. Here are a few easy recommendations for all operators and manufacturing managers:

• Use the proper melting point for your resin. LDPE, HDPE and LLDPE all need different heat levels.

• Check the head alignment before each manufacturing run

• Monitor air ring pressure to maintain bubble stability during the transition

• Clean the extruder screw regularly to prevent build-up of burned plastic

• Use excellent raw materials – poor quality pellets create additional issues and faults

• Train your staff effectively Skilled workers provide greater outputs, less pauses

• Maintenance records – logs aid you in identifying issues early

• Work with a reputable provider - excellent replacement parts and service will save you time and money

FAQs About the Three Piece Film Blowing Machine

How do I know if my extruder screw needs to be replaced?

Watch for low production, inconsistent film, or excessive energy usage. If you observe charred black particles in the film or lose temperature control, check the screw immediately.

• Check screw for wear every 3,000-5,000 run hours

• Use the correct equipment to measure the screw gap

• Now, compare the output to the machine’s original specifications

Can one Three Piece Film Blowing Machine make different film widths?

Yes. Change size of die head, adjust air ring and nip rolls. Most machines work with a variety of film widths. Some have a defined distance. Some are more plastic.

• Film width is dependent on size of die head and blow ratio

• A bigger film takes more air, a broader nip roll

• Always verify the rated width range of the machine first.

What resins work best with a Multi Layer Film Blowing Machine?

Multi Layer Film Blowing Machine may be used for HDPE, LDPE, LLDPE, EVA, Nylon and EVOH. distinct resins impart distinct properties to the film layer.

• HDPE provides strength and rigidity

• LDPE or LLDPE for flex and seal strength?

• EVOH or nylon is a barrier to gas and moisture

How does a High Output Film Blowing Machine run faster?

A High Output Film Blowing Machine features a larger screw and a better die head. It also employs a high performance air ring. Better cooling sets the bubble quicker . This enables the machine to work faster without affecting film quality.

• More melt is conveyed each spin by a larger screw

• Dual lip air rings cool quicker

• Systems of auto-control keep settings constant at high speeds

Conclusion

It is. Buying a three piece film blowing machine is a sensible decision for any firm. It is dependable and effective. The three pieces - the screw, the die head and the air ring - function as a team.

They always offer you a nice film. Lower expenses, higher quality, less waste. Looking for an HDPE film blowing machine, LDPE or multi layer film blowing machine? Visit Ruian Yunfeng Machinery Co., Ltd. Now. “They are the best partner of your factory.”
