YF-FD Square Bottom Bag Making Machine

1. Suitable for sealing and cutting PE film, with firm sealing, accurate folding, and fully automatic electric eye tracking. Mainly used for producing plastic film square bottom bags and square bags.

2. This series adopts computer control, electric eye tracking, static eliminator, automatic counting, automatic temperature control and alarm device. Easy to operate and firmly sealed at the bottom.

3. Multi purpose: Different sizes and forms of square bottom bag machines can be customized.

Get A Free Quote

Product Specifications

modelYF - FD800YF - FD1000
Max width of bag800mm1000mm
Max length of bag700mm1000mm
Bag making speed20 - 50pcs/min20 - 60pcs/min
main power(KW)2.22.2kw
Supply voltage220V/50Hz220V/50Hz
Machine weight(kg)2500kg2800kg
Dimensions8200×1560×1550mm8200×1560×1550mm

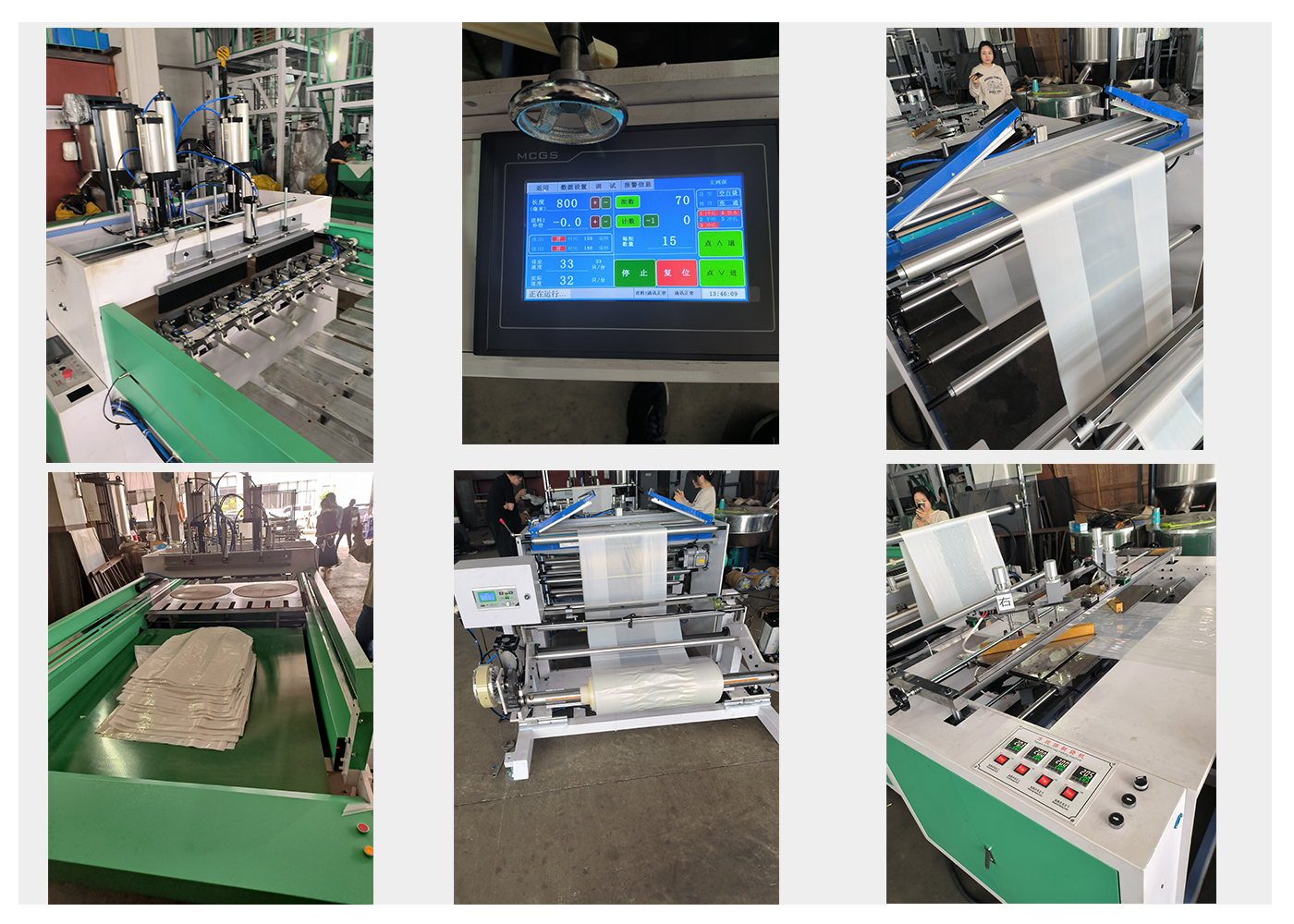

Product Description


Product Applications

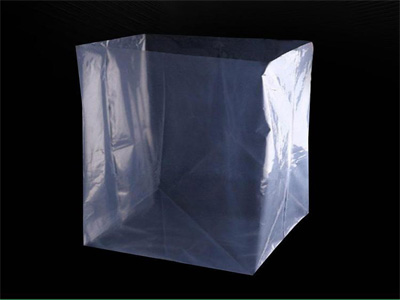

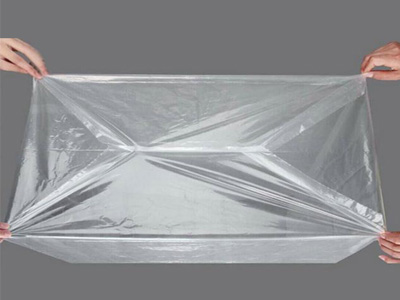

Square bottom bag

Square bottom bag

Square bottom bag

WHY CHOOSE US?

Category     Other
1.Screws
Optimized screw raises the extru-sion volume and using lifespan.Higher anti-corrupt and anti-grind ability
Customized screw keyway and 30:1 or 32:1L/D double alloy screws with vacuum firetreatment.
Only 28:1 or 30:1 L/D single alloy screw
2.Motor
The motor operates with frequency conversion, which shows its advantages in terms of energy saving.
Imported from American GE or Germany SIEMENS (with a three-year warranty).
Other brands from China domestic market (with only one year warranty)
3.Up-traction
The up-traction determines the Traction stability, plastic film flatness and embossing effect.
5-rollers traction, one embossing roller, one bending roller, one polyurethane roller and two traction rollers.
Three rollers or four rollers traction with normal rubber.
4.Frame
The thick frame makes the machine more durable and reliable.
The square tubes of machines are all thickened with a diameter of 120mm.
The mainstream in the market is 80mm in diameter
5.Gear Box
External circulation oil cooling system and hard tooth ensures the high working speed and lifespan of the gear joint.
Xiaoshan brand hard tooth oil-cooled type, with filter, circulating oil and external cooling pump.
Soft tooth gear box Other brands of from China domestic market without external oil cooling system .
6.Heating
Advanced heating is much better in terms of life, heating speed and heat preservation effect than stainless steel heating.
Aluminum heating, ceramic heating and more advanced infrared heating.
Traditional stainless steel heating.
7.Air ring
The structurally optimized high-speed air ring reduces the wind resistance and make the change of wind volume gentle.
Italian designed high-speed double/ triple vent air ring.
Normal single, double vent air ring from domestic market.
8.Switch
cost-effective, high-quality materials, safety performance, diversified design and intelligent functions.
Chint switches are cost-effective, high-quality materials, safety performance, diversified design and intelligent functions.
The ordinary switch has low cost performance, general material, low safety performance and ordinary design.
9.Production
5S management standards and high-end machining center equip Chaoxin with precision production capabilities and ensure product standards and quality.
5S management modern standardized workshop.
Traditional and chaotic production management.
