YF-HCWL Non-Tension Bag Making Machine

This machine is suitable for making PE flat bags, disposable medical packing bags and so on.

1.This machine adopts microcomputer control and material-pulling by stopping motor. (servo motor control system available for option).

2.Arbitrary fixed-length, accurate and stable step photoelectric control feeding.

3.Automatic counting and set table counting alarm.

4.Automatic constant temperature makes the sealing of bag opening firm and smooth.

5.Available in: Hydraulic drive Feeding and Automatic Sorting Conveyor Table.

Get A Free Quote

Product Specifications

ModelYF - HC600YF - HC800YF - HC1000YF - HC1200
Max width of bag(mm)5007009001100
Max length of bag(mm)1800180018001800
Thickness of bag(mm)0.008 - 0.20.008 - 0.20.008 - 0.20.008 - 0.2
Bag making speed(pcs/min)30 - 150pcs/min30 - 150pcs/min20 - 120pcs/min20 - 100pcs/min
Main motor power(kw)1.51.52.22.2
Total power(kw)12131718
Supply voltage380V/50Hz380V/50Hz
380V/50Hz
380V/50Hz
Machine weight(kg)1500160017001800
Dimensions(mm)6000×1300×19006000×1500×1900
6000×1700×1900
6000×1900×1900

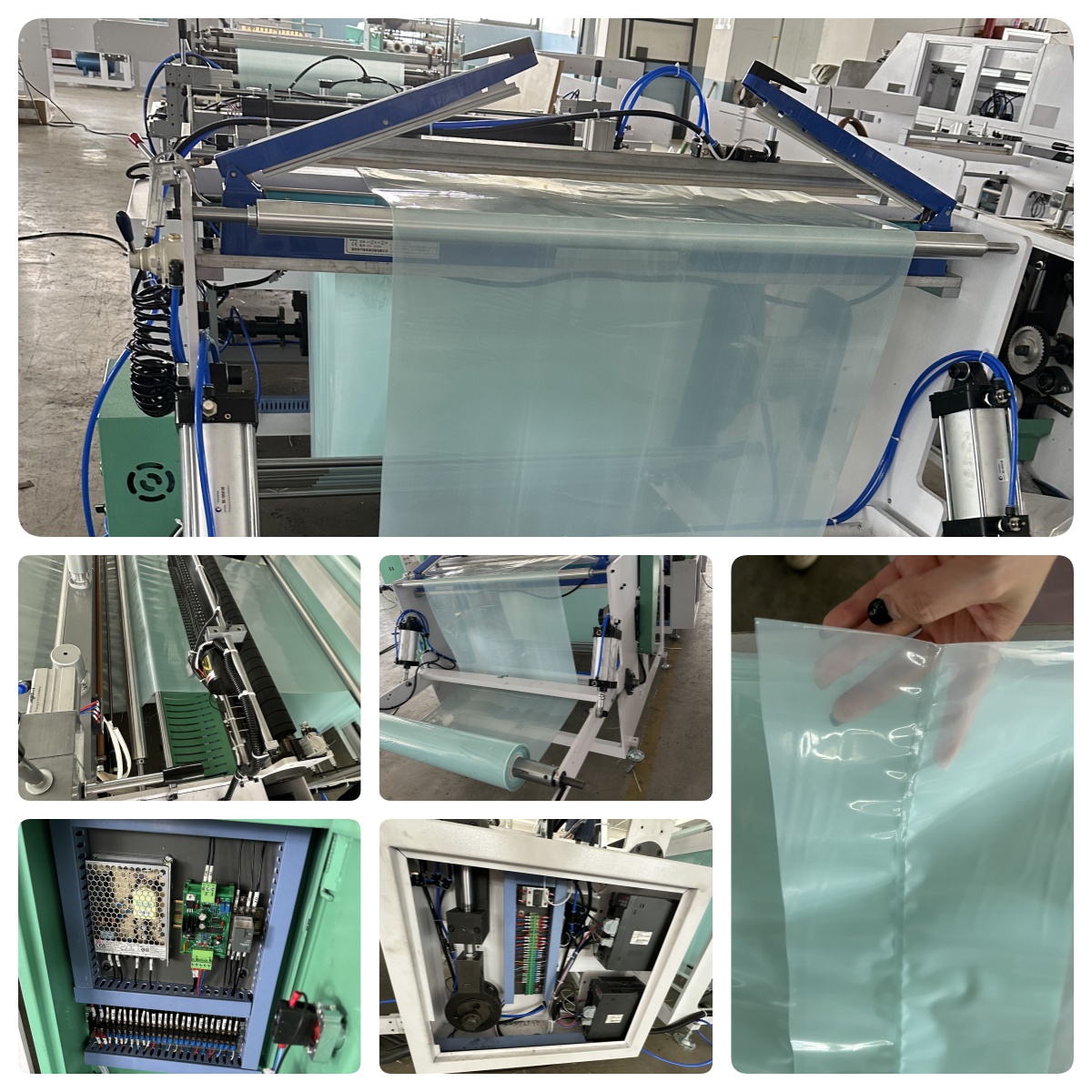

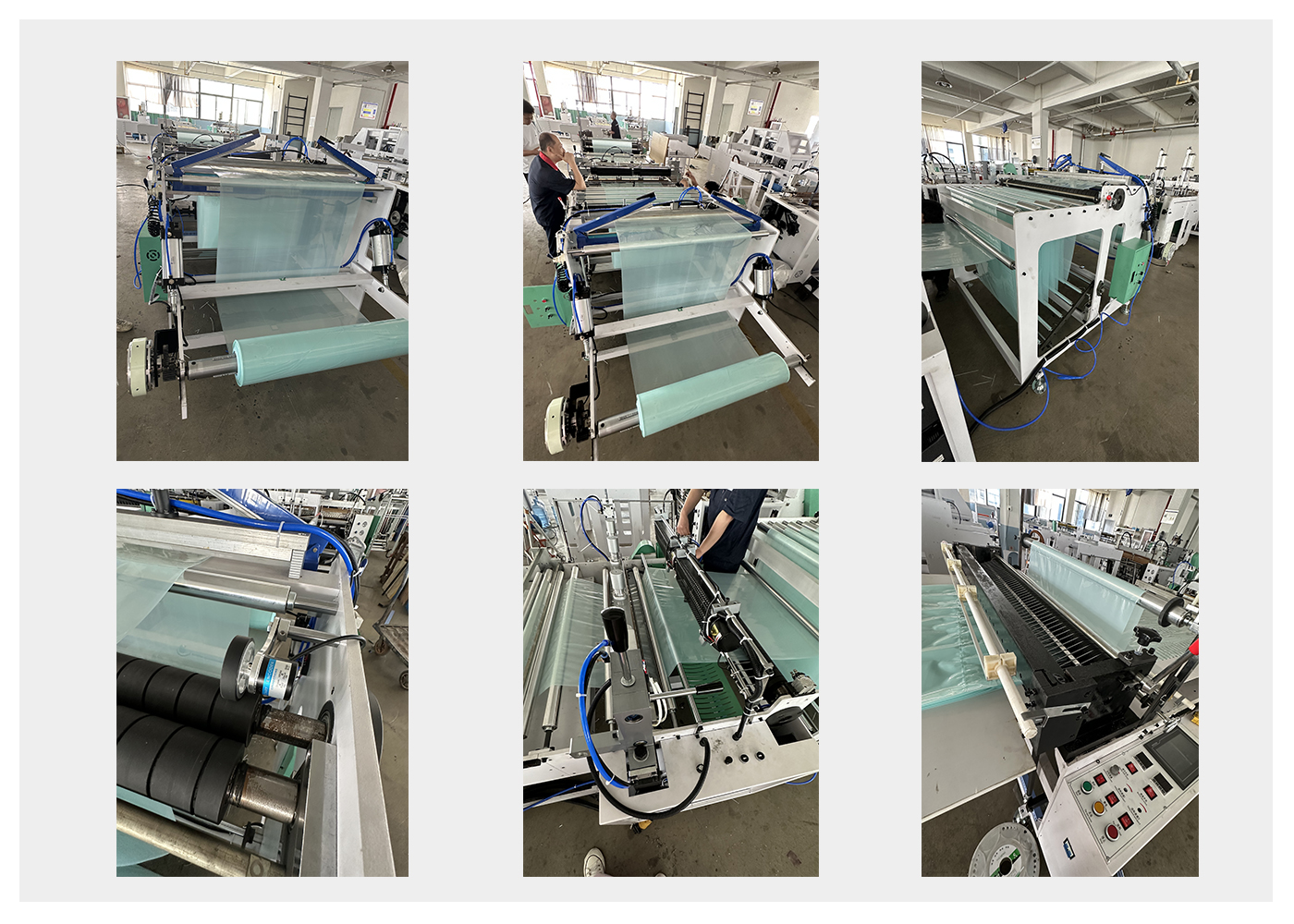

Product Description


Product Applications

Sample bag

Sample bag

Sample bag

WHY CHOOSE US?

Category     Other
1.Screws
Optimized screw raises the extru-sion volume and using lifespan.Higher anti-corrupt and anti-grind ability
Customized screw keyway and 30:1 or 32:1L/D double alloy screws with vacuum firetreatment.
Only 28:1 or 30:1 L/D single alloy screw
2.Motor
The motor operates with frequency conversion, which shows its advantages in terms of energy saving.
Imported from American GE or Germany SIEMENS (with a three-year warranty).
Other brands from China domestic market (with only one year warranty)
3.Up-traction
The up-traction determines the Traction stability, plastic film flatness and embossing effect.
5-rollers traction, one embossing roller, one bending roller, one polyurethane roller and two traction rollers.
Three rollers or four rollers traction with normal rubber.
4.Frame
The thick frame makes the machine more durable and reliable.
The square tubes of machines are all thickened with a diameter of 120mm.
The mainstream in the market is 80mm in diameter
5.Gear Box
External circulation oil cooling system and hard tooth ensures the high working speed and lifespan of the gear joint.
Xiaoshan brand hard tooth oil-cooled type, with filter, circulating oil and external cooling pump.
Soft tooth gear box Other brands of from China domestic market without external oil cooling system .
6.Heating
Advanced heating is much better in terms of life, heating speed and heat preservation effect than stainless steel heating.
Aluminum heating, ceramic heating and more advanced infrared heating.
Traditional stainless steel heating.
7.Air ring
The structurally optimized high-speed air ring reduces the wind resistance and make the change of wind volume gentle.
Italian designed high-speed double/ triple vent air ring.
Normal single, double vent air ring from domestic market.
8.Switch
cost-effective, high-quality materials, safety performance, diversified design and intelligent functions.
Chint switches are cost-effective, high-quality materials, safety performance, diversified design and intelligent functions.
The ordinary switch has low cost performance, general material, low safety performance and ordinary design.
9.Production
5S management standards and high-end machining center equip Chaoxin with precision production capabilities and ensure product standards and quality.
5S management modern standardized workshop.
Traditional and chaotic production management.
