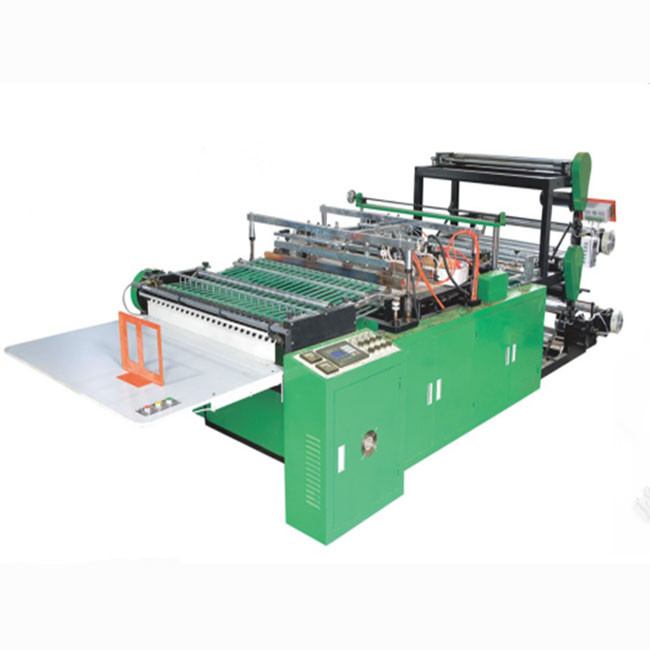

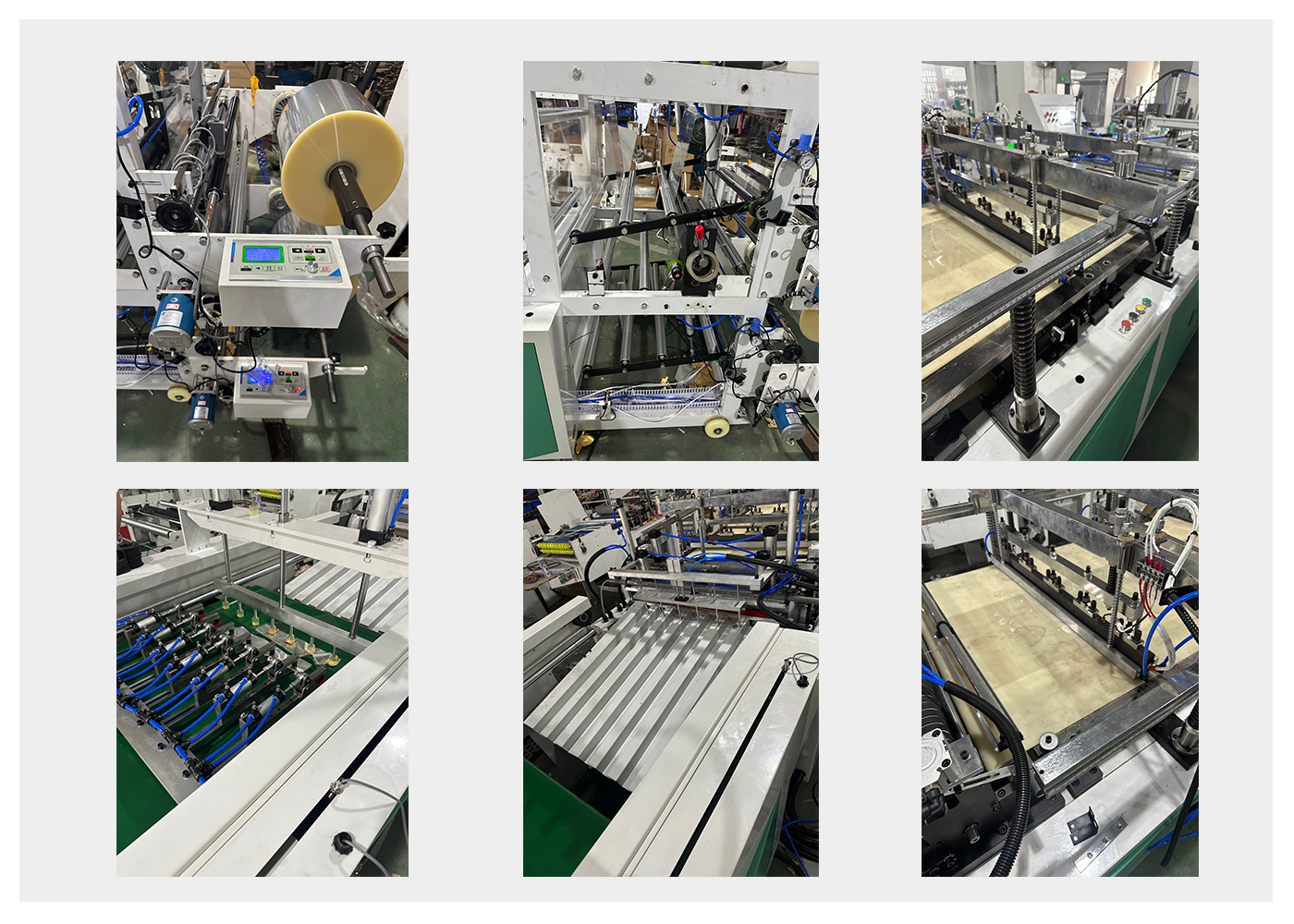

YF-XH Flower Bag Making Machine

The machine adopts frequency conversion technology, single chip microcomputer control system and humanized setting, with strong applicabilily, high dearee of automalon, easy operaton, high accuracyof hot-cuting positioning, power saving, over-voltage and under-voltage, protection, low noise and so on.
1.This machine is controlled by a liquid crystal computer touch screen. It can preset the bag-making speed, bag-making length, and batch/batch quantity for automatic counting. It will give an early alarm and stop working after the batch quantity is completed.
2. The temperature of the ironing knife is controlled by a computer and can be synchronously tracked.
3. The speed of the main motor is controlled by a frequency converter, which operates smoothly, saves electricity and is easy and convenient to operate.
4. Photoelectric eye tracking precisely controls the size of the bags.

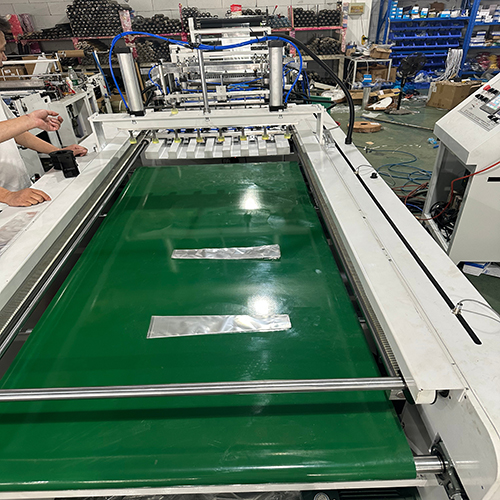

5. It adopts high-grade imported silicone conveyor belts, which have a long service life and make the bags look beautiful.
6. It has a dotted line disconnection function

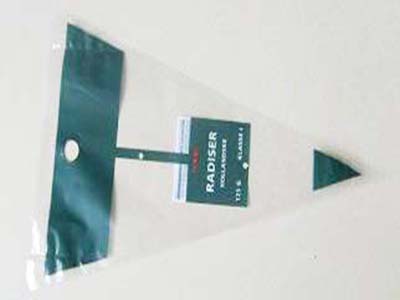

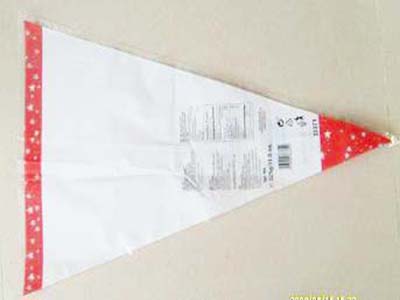

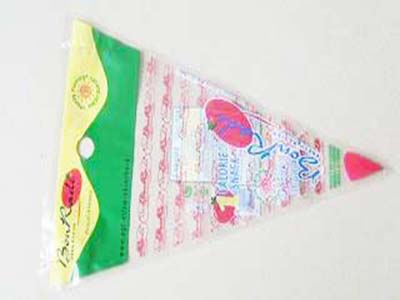

7. Special knives are designed and equipped for special-shaped bags such as flower bags, tie bags and umbrella packaging. The bags are neat and beautiful, and the cut edges are firm and smooth.

Model	YF- HC 600- 700- 800- 900- 1000
Max width of bag(mm)	520-620-720-820-920
Max bag-making angle(°)	50°
Bag making speed(pcs/min)	40-100
Main motor power(kw)	380V/5.5
Machine weight(kg)	800-1200
Dimensions(mm)	3500×1100×1700

Model

YF- HC 600- 700- 800- 900- 1000

Max width of bag(mm)

520-620-720-820-920

Max bag-making angle(°)

50°

Bag making speed(pcs/min)

40-100

Main motor power(kw)

380V/5.5

Machine weight(kg)

800-1200

Dimensions(mm)

3500×1100×1700

WHY CHOOSE US?

Category

Other

1.Screws
Optimized screw raises the extru-sion volume and using lifespan.Higher anti-corrupt and anti-grind ability

Customized screw keyway and 30:1 or 32:1L/D double alloy screws with vacuum firetreatment.

Only 28:1 or 30:1 L/D single alloy screw

2.Motor
The motor operates with frequency conversion, which shows its advantages in terms of energy saving.

Imported from American GE or Germany SIEMENS (with a three-year warranty).

Other brands from China domestic market (with only one year warranty)

3.Up-traction
The up-traction determines the Traction stability, plastic film flatness and embossing effect.

5-rollers traction, one embossing roller, one bending roller, one polyurethane roller and two traction rollers.

Three rollers or four rollers traction with normal rubber.

4.Frame
The thick frame makes the machine more durable and reliable.

The square tubes of machines are all thickened with a diameter of 120mm.

The mainstream in the market is 80mm in diameter

5.Gear Box
External circulation oil cooling system and hard tooth ensures the high working speed and lifespan of the gear joint.

Xiaoshan brand hard tooth oil-cooled type, with filter, circulating oil and external cooling pump.

Soft tooth gear box Other brands of from China domestic market without external oil cooling system .

6.Heating
Advanced heating is much better in terms of life, heating speed and heat preservation effect than stainless steel heating.

Aluminum heating, ceramic heating and more advanced infrared heating.

Traditional stainless steel heating.

7.Air ring
The structurally optimized high-speed air ring reduces the wind resistance and make the change of wind volume gentle.

Italian designed high-speed double/ triple vent air ring.

Normal single, double vent air ring from domestic market.

8.Switch
cost-effective, high-quality materials, safety performance, diversified design and intelligent functions.

Chint switches are cost-effective, high-quality materials, safety performance, diversified design and intelligent functions.

The ordinary switch has low cost performance, general material, low safety performance and ordinary design.

9.Production
5S management standards and high-end machining center equip Chaoxin with precision production capabilities and ensure product standards and quality.

5S management modern standardized workshop.

Traditional and chaotic production management.
