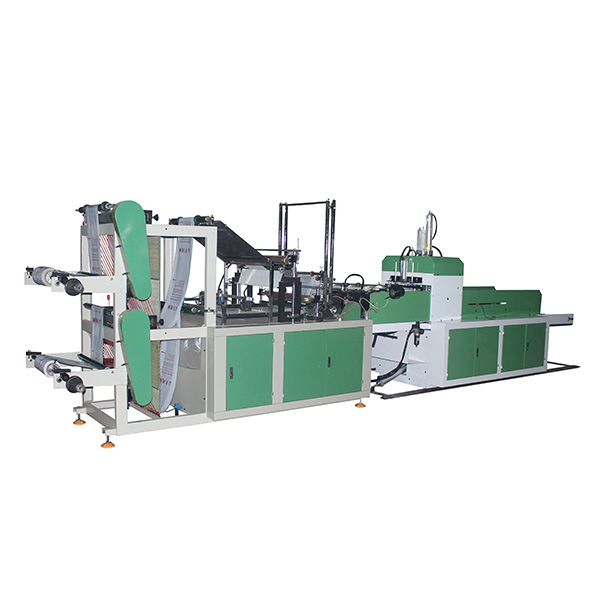

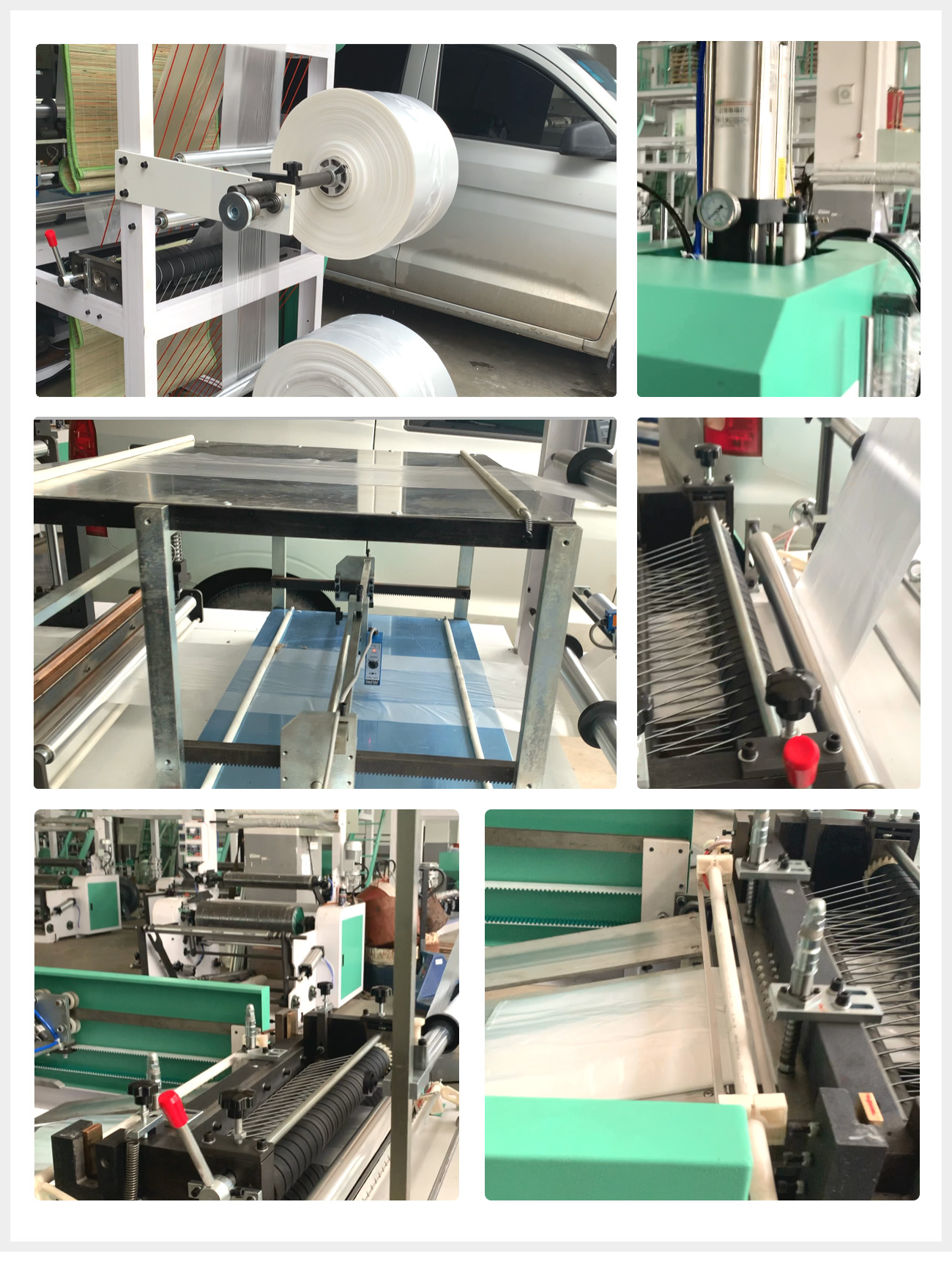

Fully automatic double-layer two-line heat-sealing cold-cutting bag making machine

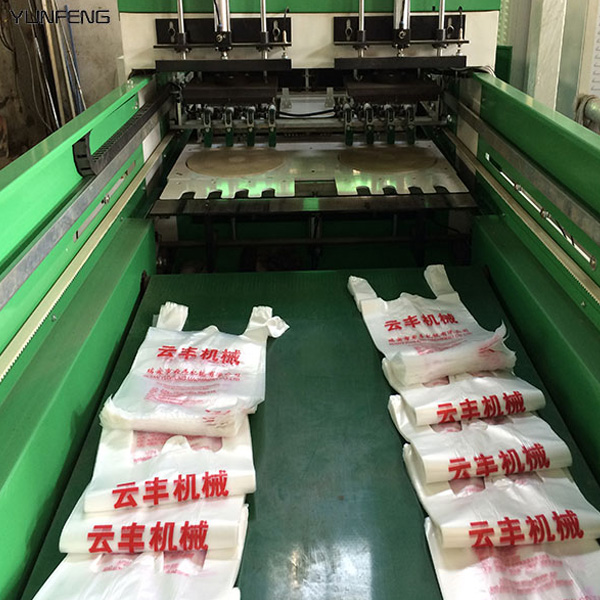

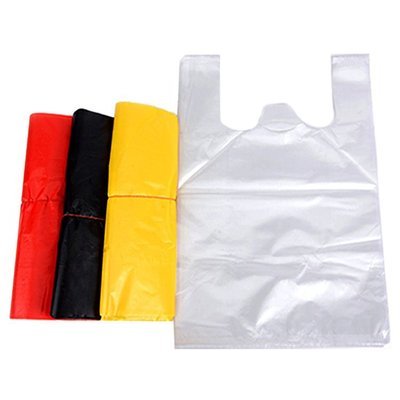

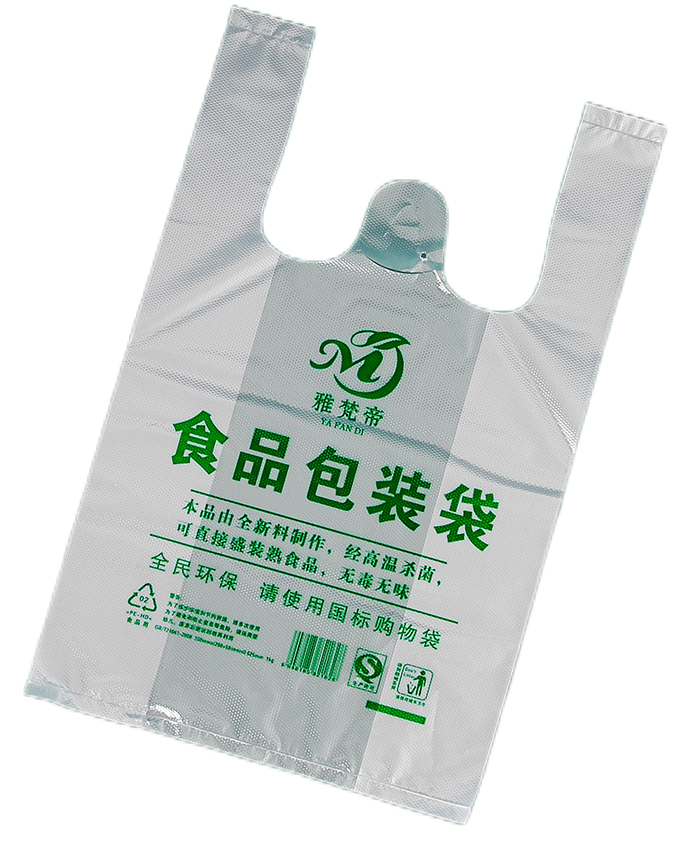

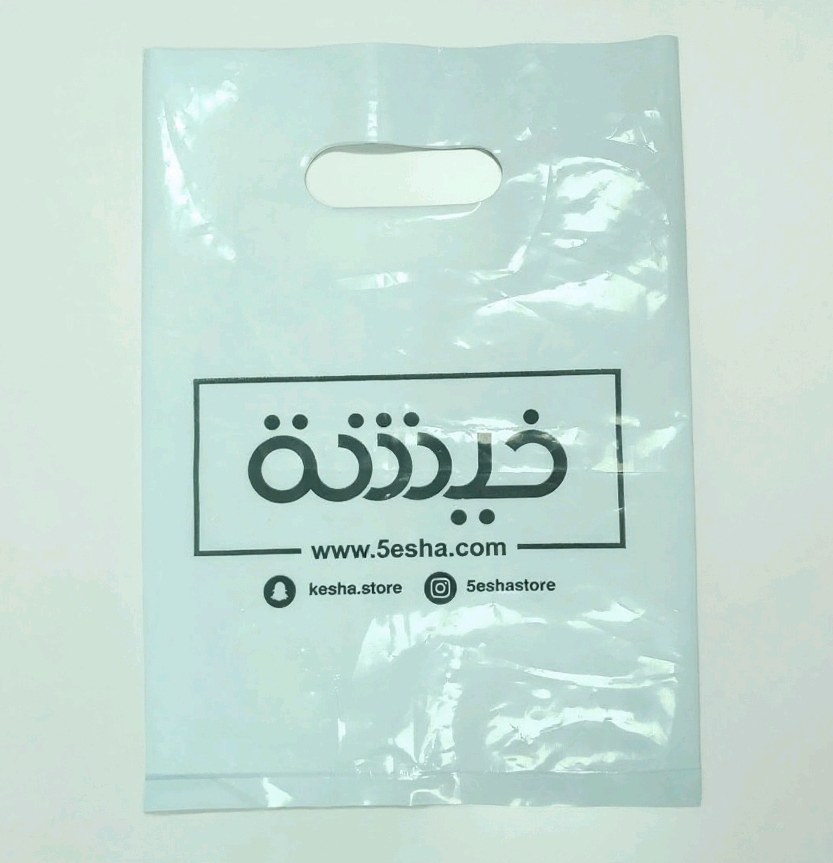

This machine is suitable for making PE vest bags(supermarket handbags),flat bags(for clothes and shoes),disposable medical packing bags and bags for sanitary napkins.

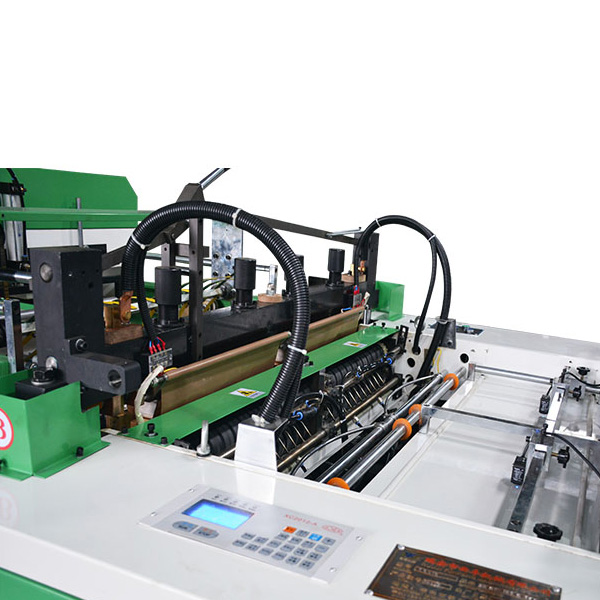

1.This machine adopts microcomputer control and material-pulling by stopping motor.(Servo motor control system available for option).

2.Arbitrary fixed length, step size photoelectric tracking, accurate and stable, automatic stop after label loss, feeding adopts photoelectric control.

3.Automatic counting and set table counting alarm.

4.Automatic constant temperature makes the sealing of bag opening firm and smooth.

Model	YF - HC - 800	YF - HC1000	YF - HC - 800	YF - HC1000
Max width of bag(mm)	220×6 350×4 750×2	300×6 450×4 950×2	170×8 380×4 750×2	210×8 450×4 950×2
Max length of bag(mm)	250 - 700	250 - 700	250 - 700	250 - 700
Thickness of bag(mm)	0.008 - 0.1	0.008 - 0.1	0.008 - 0.1	0.008 - 0.1
Bag making speed(pcs/min)	30 - 140	30 - 120	30 - 140	30 - 120
Total power(kw)	8	10	8	10
Supply voltage	220V/50Hz	220V/50Hz	220V/50Hz	220V/50Hz
Machine weight(kg)	1000	1200	1200	1500
Dimensions(mm)	7000×1400×1900	7000×1600×1900	7000×1400×1900	7000×1600×1900

Model

YF - HC - 800

YF - HC1000

YF - HC - 800

YF - HC1000

Max width of bag(mm)

220×6
350×4
750×2

300×6
450×4
950×2

170×8
380×4
750×2

210×8
450×4
950×2

Max length of bag(mm)

250 - 700

Thickness of bag(mm)

0.008 - 0.1

Bag making speed(pcs/min)

30 - 140

30 - 120

30 - 140

30 - 120

Total power(kw)

Supply voltage

220V/50Hz

Machine weight(kg)

1000

1200

1500

Dimensions(mm)

7000×1400×1900

7000×1600×1900

7000×1400×1900

7000×1600×1900

WHY CHOOSE US?

Category

Other

1.Screws
Optimized screw raises the extru-sion volume and using lifespan.Higher anti-corrupt and anti-grind ability

Customized screw keyway and 30:1 or 32:1L/D double alloy screws with vacuum firetreatment.

Only 28:1 or 30:1 L/D single alloy screw

2.Motor
The motor operates with frequency conversion, which shows its advantages in terms of energy saving.

Imported from American GE or Germany SIEMENS (with a three-year warranty).

Other brands from China domestic market (with only one year warranty)

3.Up-traction
The up-traction determines the Traction stability, plastic film flatness and embossing effect.

5-rollers traction, one embossing roller, one bending roller, one polyurethane roller and two traction rollers.

Three rollers or four rollers traction with normal rubber.

4.Frame
The thick frame makes the machine more durable and reliable.

The square tubes of machines are all thickened with a diameter of 120mm.

The mainstream in the market is 80mm in diameter

5.Gear Box
External circulation oil cooling system and hard tooth ensures the high working speed and lifespan of the gear joint.

Xiaoshan brand hard tooth oil-cooled type, with filter, circulating oil and external cooling pump.

Soft tooth gear box Other brands of from China domestic market without external oil cooling system .

6.Heating
Advanced heating is much better in terms of life, heating speed and heat preservation effect than stainless steel heating.

Aluminum heating, ceramic heating and more advanced infrared heating.

Traditional stainless steel heating.

7.Air ring
The structurally optimized high-speed air ring reduces the wind resistance and make the change of wind volume gentle.

Italian designed high-speed double/ triple vent air ring.

Normal single, double vent air ring from domestic market.

8.Switch
cost-effective, high-quality materials, safety performance, diversified design and intelligent functions.

Chint switches are cost-effective, high-quality materials, safety performance, diversified design and intelligent functions.

The ordinary switch has low cost performance, general material, low safety performance and ordinary design.

9.Production
5S management standards and high-end machining center equip Chaoxin with precision production capabilities and ensure product standards and quality.

5S management modern standardized workshop.

Traditional and chaotic production management.
