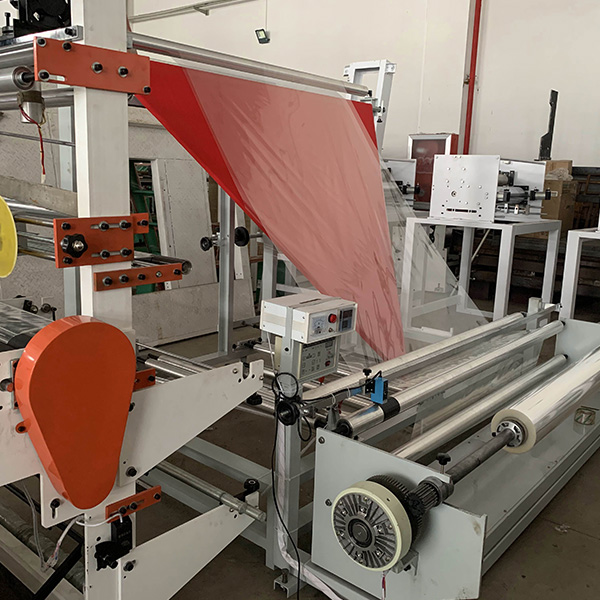

Side seal bag making machine

This machine is suitable for the production of garment bags, towel bags, bread bags and jewelry bags for non-printing plastic film, such as OPP, PP, PE, CPP, POF, etc. , variable frequency speed regulation, stepper motor drag material (optional servo motor control system) . Arbitrary fixed length, step length photoelectric tracking, accurate, smooth, automatic stop sign. Automatic synchronous on double-sided tape, automatic drilling. Heat-sealed lace, automatic constant temperature, firm and even seal

Get A Free Quote

Product Specifications

ModelYF - BF - 600YF - BF - 800YF - BF - 1000 - 1500
Max length of bag(mm)50 - 70050 - 70050 - 780 - 1000
Max width of bag(mm)550750950 - 1450
Bag making sceed(pcs/min)60 - 26040 - 24040 - 220
Total power(kw)6.577.5 - 9
Supply voltage220V/50Hz220V/50Hz220V/50Hz
Machine weight(kg)850900950 - 1250
Dimensions(mm)3700×1100×12003720×1300×14003500×1500×1400

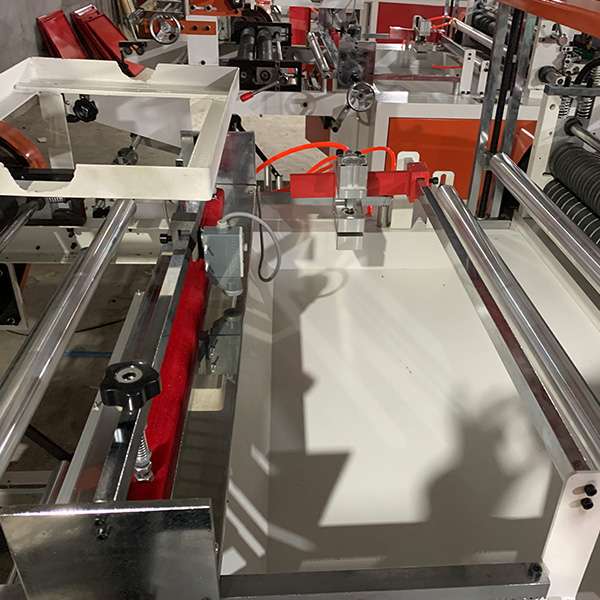

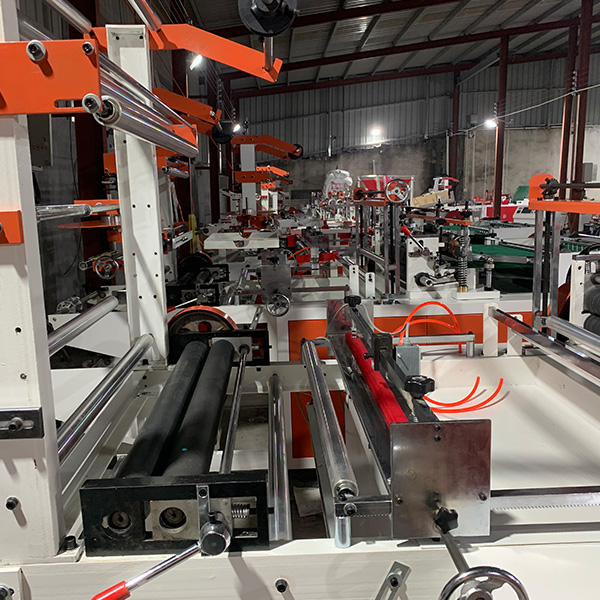

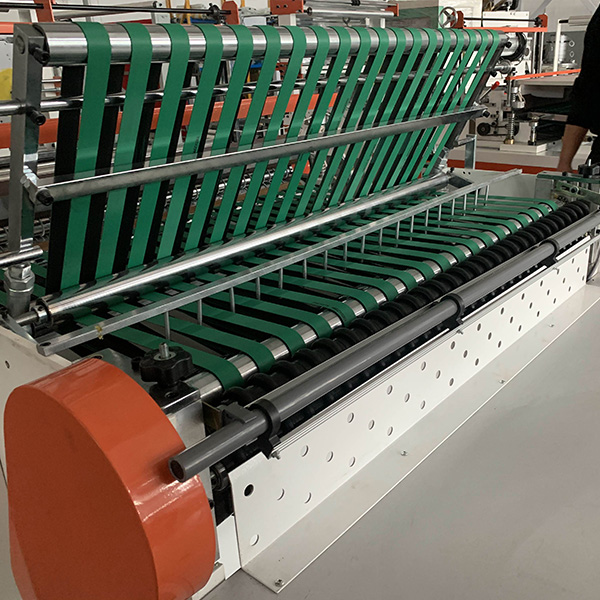

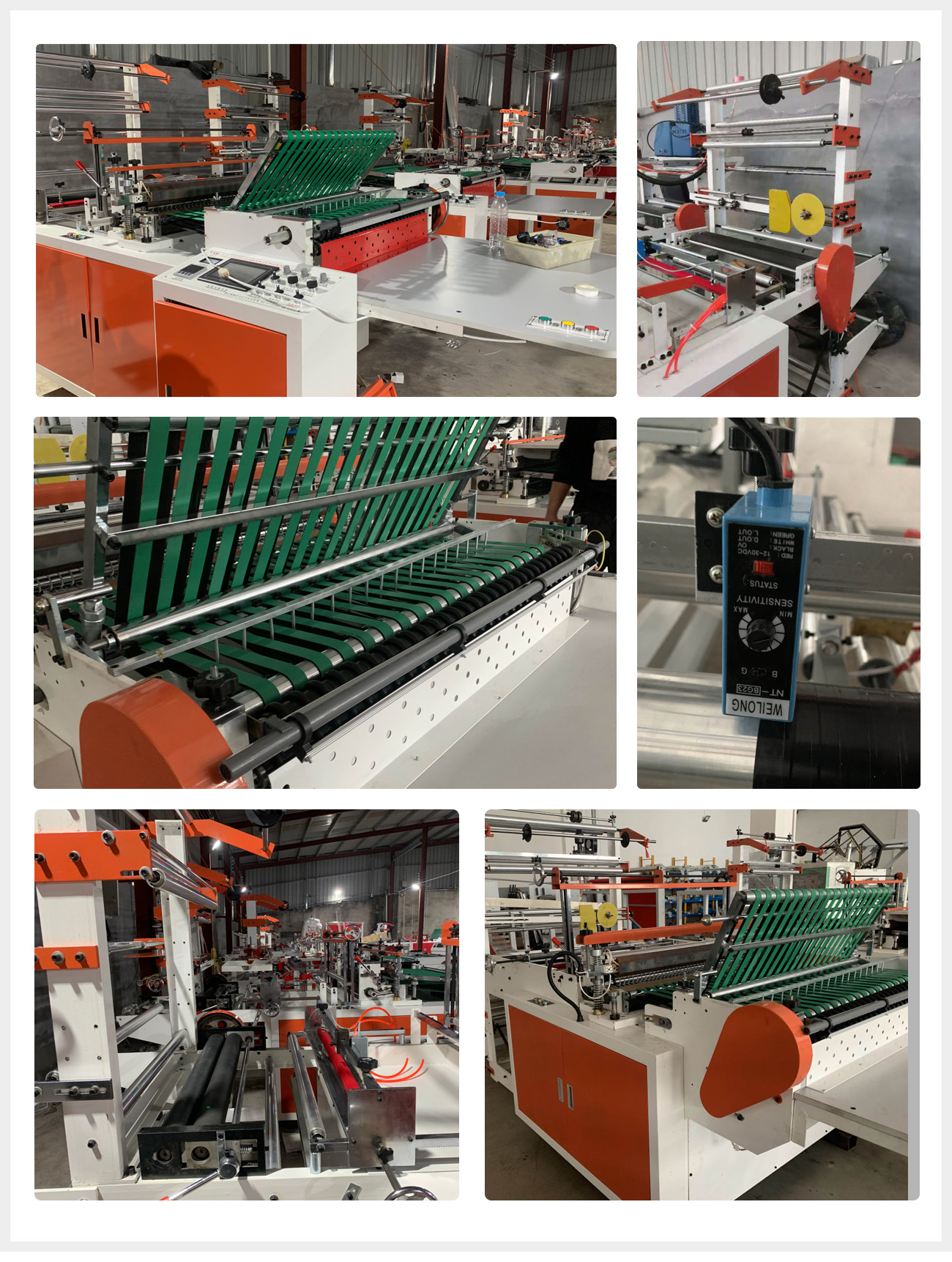

Product Description

44

Product Applications

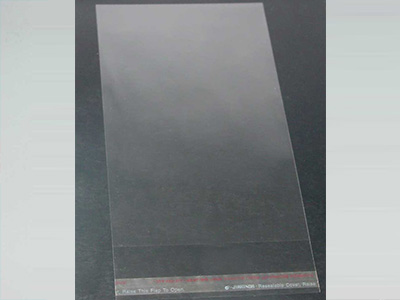

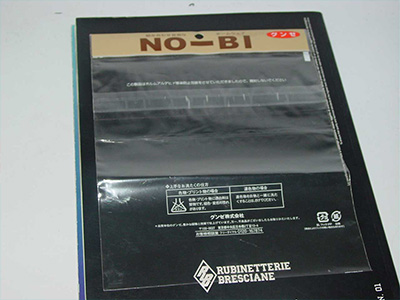

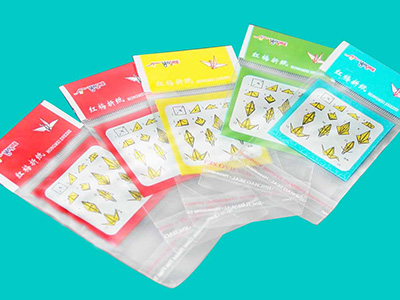

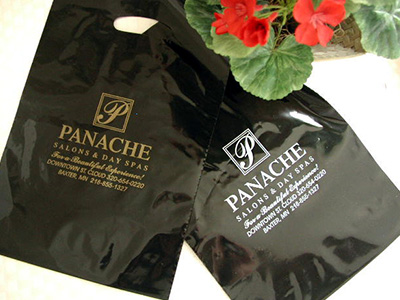

Sample bag

Sample bag

Sample bag

Sample bag

WHY CHOOSE US?

Category     Other
1.Screws
Optimized screw raises the extru-sion volume and using lifespan.Higher anti-corrupt and anti-grind ability
Customized screw keyway and 30:1 or 32:1L/D double alloy screws with vacuum firetreatment.
Only 28:1 or 30:1 L/D single alloy screw
2.Motor
The motor operates with frequency conversion, which shows its advantages in terms of energy saving.
Imported from American GE or Germany SIEMENS (with a three-year warranty).
Other brands from China domestic market (with only one year warranty)
3.Up-traction
The up-traction determines the Traction stability, plastic film flatness and embossing effect.
5-rollers traction, one embossing roller, one bending roller, one polyurethane roller and two traction rollers.
Three rollers or four rollers traction with normal rubber.
4.Frame
The thick frame makes the machine more durable and reliable.
The square tubes of machines are all thickened with a diameter of 120mm.
The mainstream in the market is 80mm in diameter
5.Gear Box
External circulation oil cooling system and hard tooth ensures the high working speed and lifespan of the gear joint.
Xiaoshan brand hard tooth oil-cooled type, with filter, circulating oil and external cooling pump.
Soft tooth gear box Other brands of from China domestic market without external oil cooling system .
6.Heating
Advanced heating is much better in terms of life, heating speed and heat preservation effect than stainless steel heating.
Aluminum heating, ceramic heating and more advanced infrared heating.
Traditional stainless steel heating.
7.Air ring
The structurally optimized high-speed air ring reduces the wind resistance and make the change of wind volume gentle.
Italian designed high-speed double/ triple vent air ring.
Normal single, double vent air ring from domestic market.
8.Switch
cost-effective, high-quality materials, safety performance, diversified design and intelligent functions.
Chint switches are cost-effective, high-quality materials, safety performance, diversified design and intelligent functions.
The ordinary switch has low cost performance, general material, low safety performance and ordinary design.
9.Production
5S management standards and high-end machining center equip Chaoxin with precision production capabilities and ensure product standards and quality.
5S management modern standardized workshop.
Traditional and chaotic production management.
